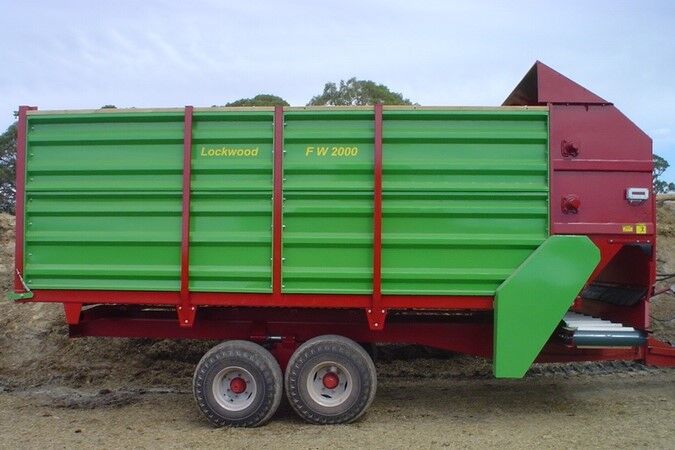

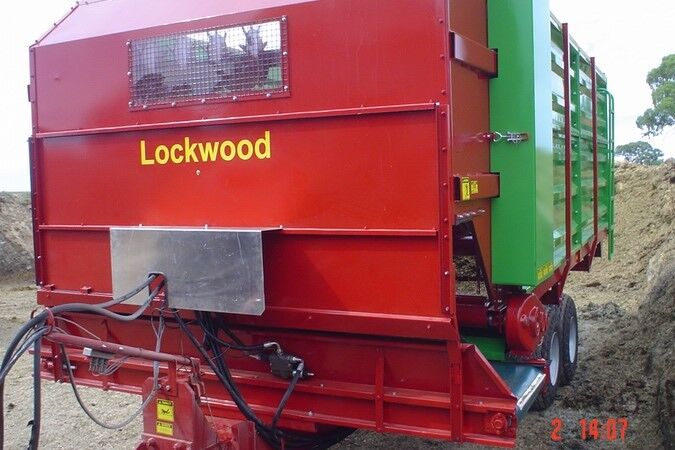

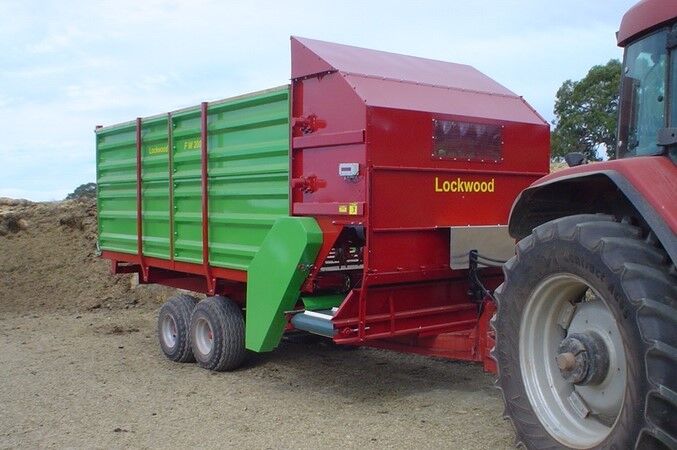

Lockwood Feedout Wagon
The Lockwood feedout wagon is a robust and low maintenance vehicle that meets the requirements of agricultural practice while being reliable, low-cost and providing efficient feed out of fodder for all sizes of farms.
A cross conveyor with left and right handed discharge ensures regular fodder discharge without any blocking.
Loading a Lockwood wagon is easily achievable with a shear grab or forks on the front end loader
The floor in the Lockwood Feed Out Wagon is made of specially treated timber planks, while the sides are constructed of 3mm cold form steel plate.
From the most compact silage to the driest hay, the Lockwood Feed Out Wagon does not have any problems thanks to the advanced beater system.
The floor chains and slats are easily kept at the correct tension

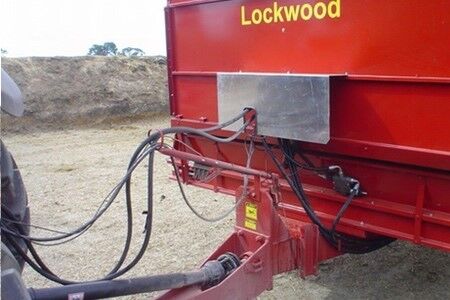

The Feed Out Wagon is controlled from the tractor seat via an electrical control box.
A heavy duty chassis and draw bar means a long service life.
The top of the wagon is protected by a timber buffer.
- 6 models in the range (10-40m3)
- In cabin controls
- Large blockage free feed out option
- Feed out either side
- Weight Scales can be fitted
- Top edge protection
- Quick floor chains tensioners
- Lights are standard
- Forward and reverse floor control is standard.
- Strong, heavy duty construction throughout

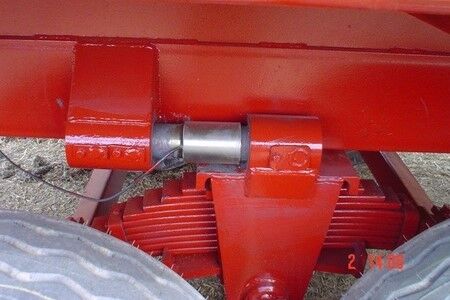

- Heavy duty leaf suspension and tandem axel standard
- Fast, efficient delivery of fodder to cross conveyor
Feature List
- Solid robust construction designed for highest long term demands

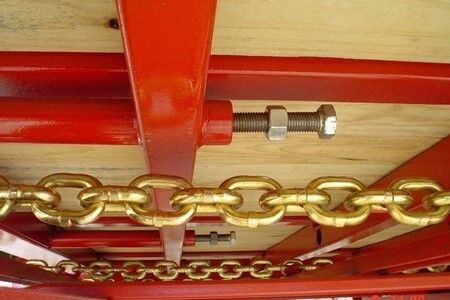

- 13 mm strong, high tensile moving floor chains each with 21 tonne breaking load and automatic chain tensioning
- Stepless adjustable hydraulically driven moving floor
- Cold formed steel sidewalls with interior spaces sealed and side wall protection
- Hydraulically driven cross conveyor that can run to the left or the right as required
- Easy to open swinging rear gate e.g. for unloading in confined spaces
- Simple and convenient operation of all control functions via Bowden cables from the tractor seat
- Very good mixing effect when loaded in layers

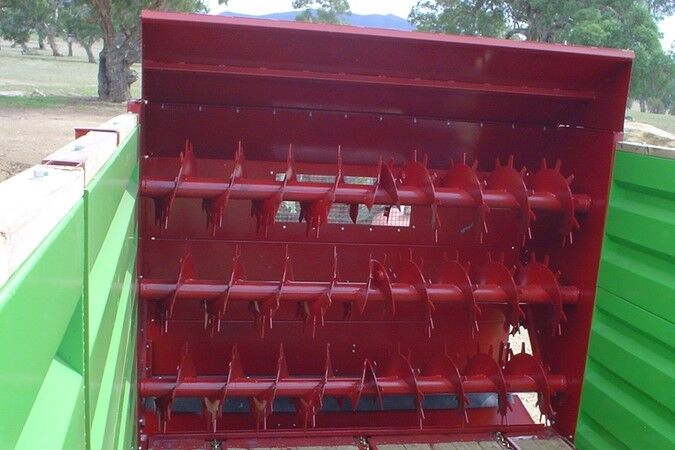

- Feed out beaters with aggressive rip tynes can also process dense and longer silage
- PTO shaft with cam type cut out clutch
